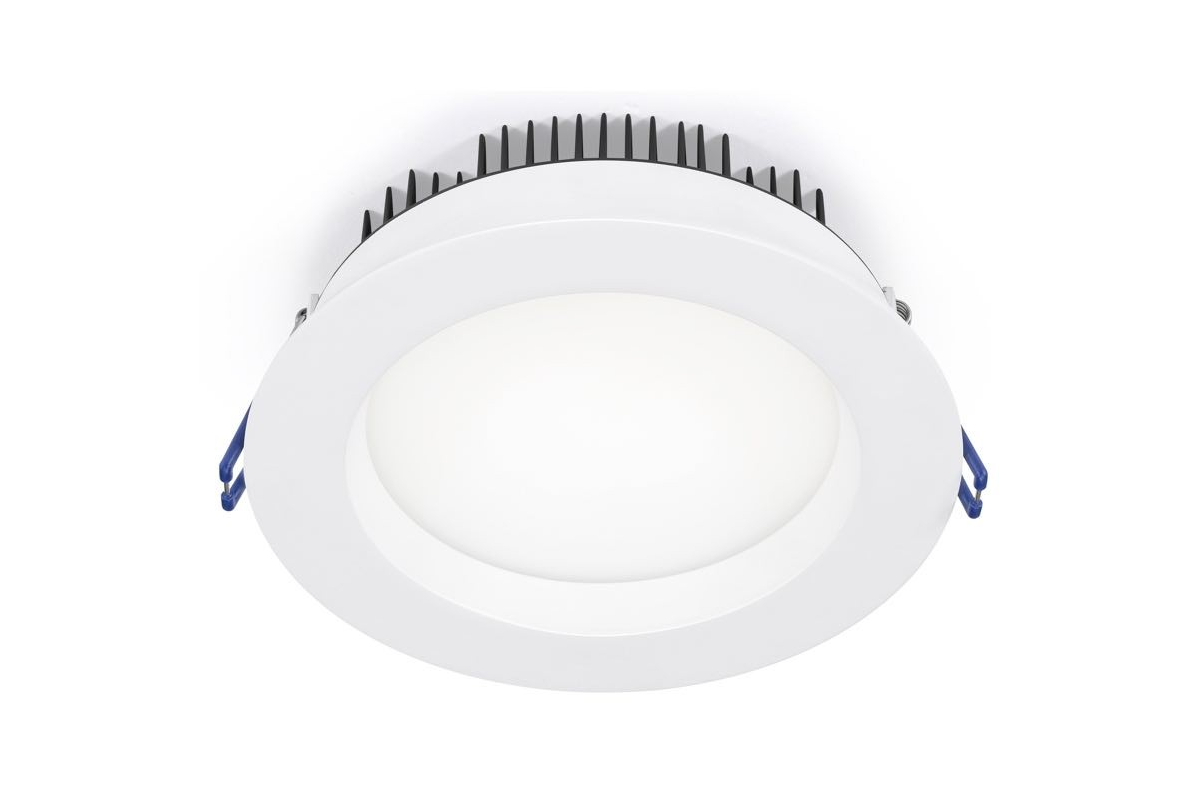

Lotus 6" Round Regressed 17W LED

Lotus 6" Round Regressed 17W LED

  • Fully Dimmable
  • cULus Listed, Energy Star and T24 Certified
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Damp Location, Insulated and Non Insulated Ceilings
  • Open Plenum Approved
  • Superb Light Quality with CRI 92
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • Junction Box Included – No Additional Hardware Needed
Add To Cart


We recommend LED/CFL dimmers that have a low range adjustment dial. After all fixtures are connected to the dimmer adjust the dial to the lowest position before the lights start to flicker of shut down. This setting depends on the local voltage and number of fixtures per dimmer.
For a typical LED dimmer rated for 150W LED load the maximum number of fixtures per dimmer is 8.

Connecting the Fixture

Open the cover of the junction box. Push and remove one of the half-inch knockouts on the side plate. Install standard L16 cable connector. Use double connector for daisy chaining multiple drivers. Insert line voltage feed into the cable connector and splice same colour wires using wire nuts. Close the cover.

Light Colour

Warm White 2700K is yellowish, similar to halogen and incandescent light. Creates soft, calming feeling. We recommend the Warm White for bedrooms, living rooms and kitchens with warm coloured countertops and cabinets.

Neutral White 4100K is whiter, colder and more energizing light. Using this colour will make the room look white, modern and brighter. We recommend the Neutral White for bathrooms, offices and work areas, garages, kitchens with white or dark countertops and cabinets.



  • Input Voltage: 120V AC
  • Power factor: > 0.99
  • Energy Used: 17W
  • Halogen equivalent: 90W
  • Beam Angle: 95°
  • Light colour options: Warm White 2700K and Neutral White 4100K
  • Light output: Warm White 1000 lm, Neutral White 1050 lm
  • CRI: 93
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus Listed
  • Rated: Type IC (Direct Contact with Insulation), Energy Star, Air-Tight, T24


  • OD 7″ (178 mm); ID 6″ (152 mm); Thickness 2 1/4″ (56 mm)
  • Cut out: 6″ to 6 1/4″

Suitable for Insulated Ceilings & Open Plenum locations.


Lotus LED Lights ship within two days.
